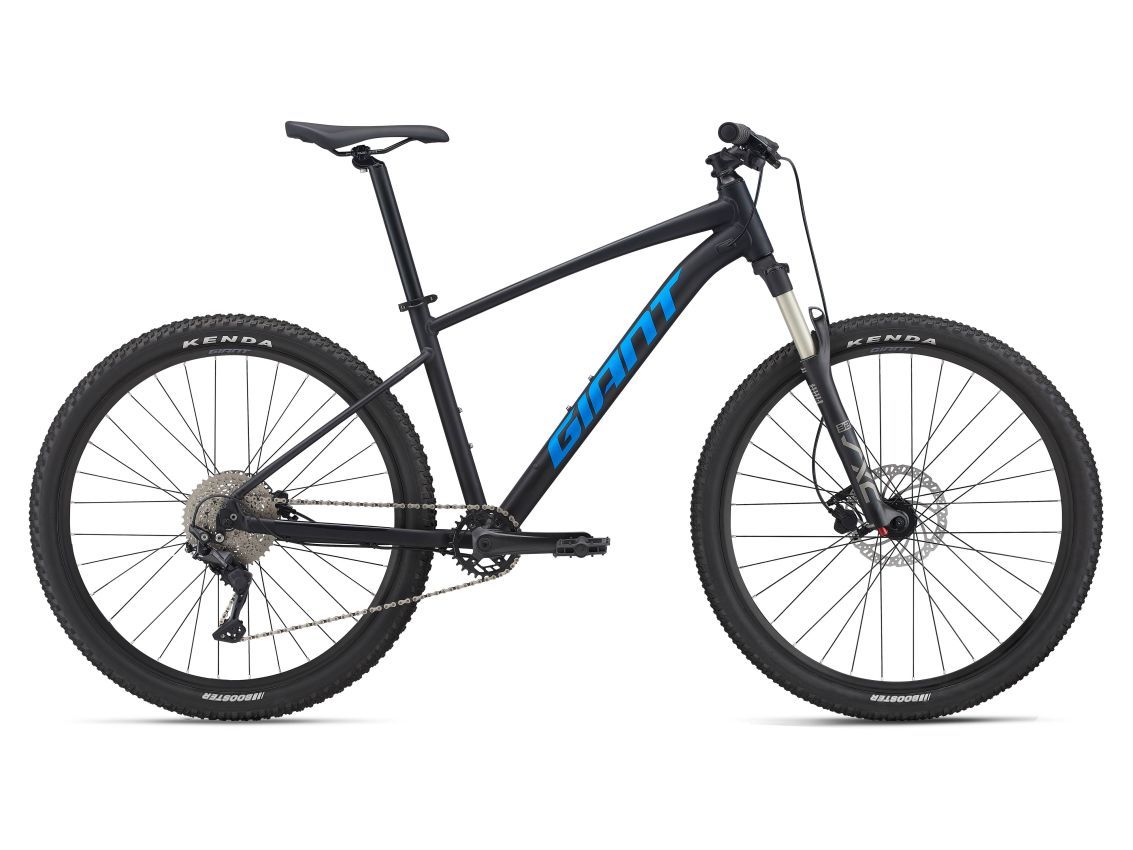

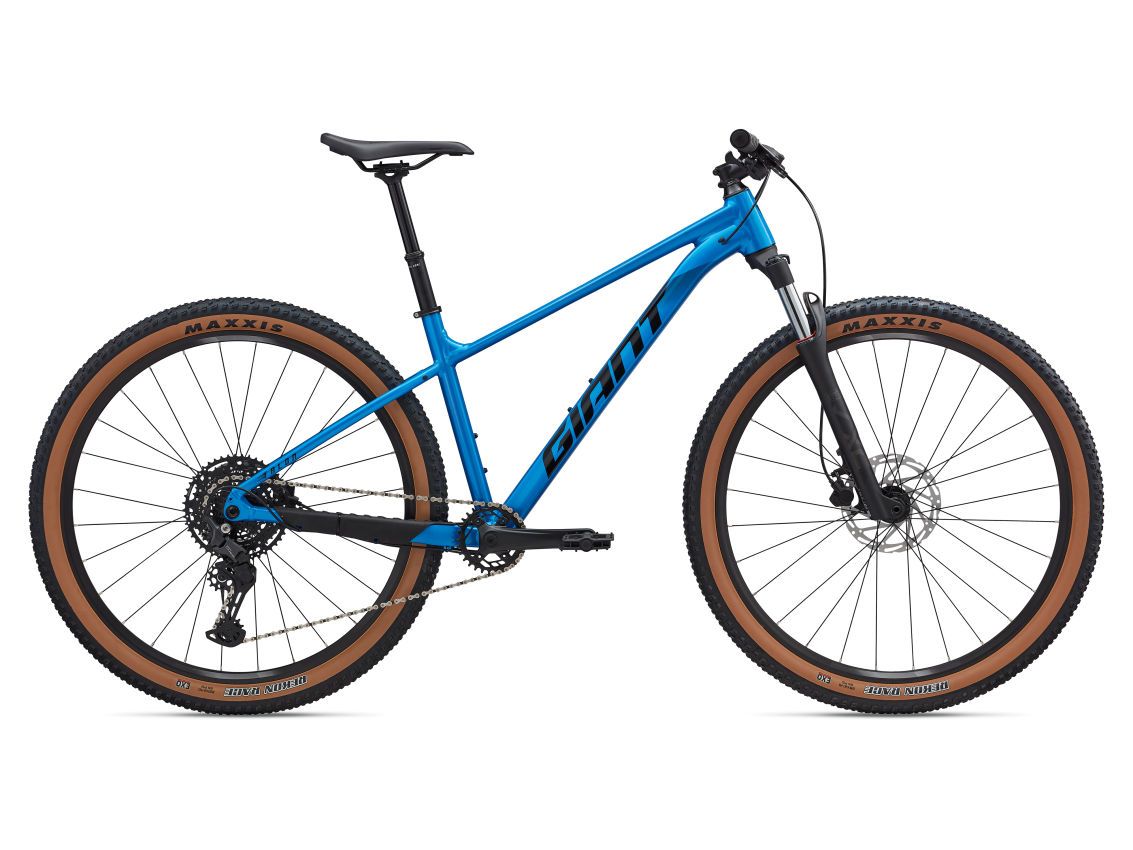

Giant Talon 1

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

• Sizes
  27.5: XS,S, 29: S,M,L,XL,XXL
• Colors
  Metallic Blue, Charcoal
• Frame
  ALUXX-grade aluminum, disc
• Fork
  SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
• Seatpost
  Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)
• Saddle
  Giant ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  Shimano CUES SL-6000, 1x10
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano CUES RD-U6000, clutch
• Brakes
  Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Brake Levers
  Tektro HDC M275
• Cassette
  Shimano CUES, CS-LG300, 11x48
• Chain
  KMC X-11
• Crankset
  ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive
• Spokes
  stainless, 14g
• Tires
  Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
• Extras
  2.4" max tire size
• Weight
  14.59 kg (32 lbs 03 oz) - Size (L)
